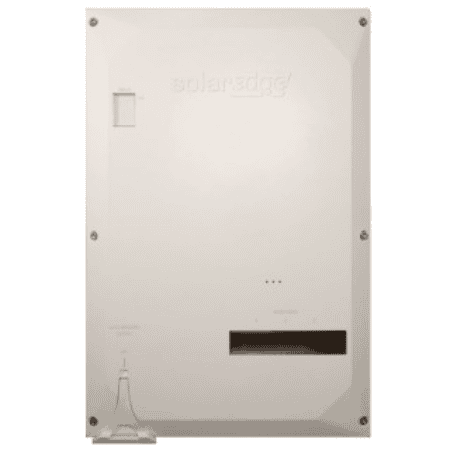

SOLAREDGE BACKUP INTERFACE - BI-EUSGN-01SolarEdge, Backup Interface, with 5kW ATX, Import/Export Meter, 200A MCB rated for Service Side Connection, BI-EUSGN-01The SolarEdge Backup Interface is designed to work with the SolarEdge energy management inverters (StorEdge / Energy Hub) to automatically provide backup power to home loads during a grid outage. Homes with the SolarEdge Backup interface + EnergyHub have full flexibility to select which loads to back up, and the ability to add scale-able storage capacity.FeaturesHighlights - Automatically provides backup power to home loads in the event of grid interruption. Full flexibility in which loads to backup the entire home or selected loads. Scalable solution to support higher power and higher capacity. Built-in Auto Tranformer and Energy Meter for easier and faster installation. Seemless integration with the StorEdge inverter to manage and monitor both PV generation and energy storage. Generator connection support.
General Information Manufacturer: SolarEdgeProduct Line:Backup InterfaceModel ID:BI-EUSGN-01Certifications and Safety Ratings: ul.jpg iec.jpg fcc.jpg rohs.jpg
Mechanical Data Technology: Backup InterfaceDimensions:20.59 x 13.88 x 8.62 InchesWeight: 73 lbsSupported Inverters: StorEdge Single Phase Inverter, StorEdge Single Phase Inverter with HD Wave TechnologyCooling: Fans (User Replaceable)Installation Type: Suitable for Use as Service Equipment
Electrical Data Input From Grid AC Current Input: 200 AmpsAC Output Voltage (Nominal): 240 VACAC Output Voltage Range: 211-264 VACAC Frequency (Nominal): 60 HzAC Frequency Range: 59.3 - 60.5 HzMicrogrid Interconnection Device Rated Current: 200 AmpsService Side AC Main Circuit Breaker Rated Current: 200 AmpsService Side AC Main Circuit Breaker Interrupt Current: 10kGrid Disconnection Switchover Time: <100 msOutput to Main Distribution Panel Max. AC Current Output: 200 AmpsAC L-L Output Voltage (Nominal): 240 VACAC L-L Output Range: 211-264 VACAC Frequency (Nominal): 60 HzAC Frequency Range: 59.3-60.5 HzMax. Inverters AC Current Output in Backup Operation: 78 AmpsImbalance Compensation in Backup Operation: 5000 VoltsAC L-N Output Voltage in Backup (Nominal): 120 VoltsAC L-N Output Voltage Range in Backup: 105-132 VoltsAC Frequency Range in Backup: 55-65 HzInput from Inverter Number of Inverter Inputs: 3Rated AC Power: 7,600 WattsMax. Continuous Input @240V: 32 AmpsRated AC Power in Continuous Backup Operation: 6,100 WattsMax. Continuous Input Current in Backup Operation: 26 AmpsPeak AC Power (<10 sec) in Backup Operation: 7,000 WattsPeak AC Current (<10 sec) in Backup Operation: 30 AmpsInverter Input AC Circuit Breaker: 40 AmpsUpgradability: Up to 3 x 40A CBGenerator Max. Rated AC Power: 15,000 WattsMax. Continuous Input Current: 63 ADCDry Contact Switch Voltage Rating: 250VAC/30VDCDry Contact Switch Current Rating: 5 Amps2-Wire Start Switch: Yes
