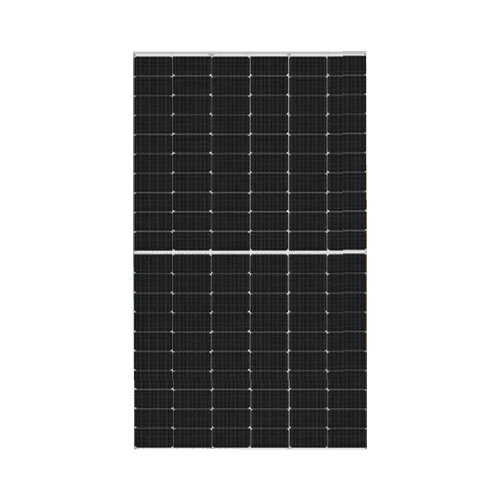

Solar4America S4AI-120B-380C 330Watt 120 1/2 Cells BoW Monocrystalline 35mm- Full Pallet (28)

Solar4America S4AI-120B-380C 330Watt 120 1/2 Cells BoW Monocrystalline 35mm- Full Pallet (28)

Regular price $7,013
Sale price $7,013 Regular price $0.00

Solar4America S4AI-120B-380C 330Watt 120 1/2 Cells BoW Monocrystalline 35mm- Full Pallet (28)

Solar4America S4AI-120B-380C 330Watt 120 1/2 Cells BoW Monocrystalline 35mm- Full Pallet (28)

Regular price $7,013
Sale price $7,013 Regular price $0.00
View full details
Description
Questions
Reviews
Solar4America
Manufacturer
Solar4America
Solar4America S4AI-120B-380C 330Watt 120 1/2 Cells BoW Monocrystalline 35mm- Full Pallet (28)

The new 330W modules from S4A are designed for home solar projects, providing a smart energy solution with patented technology for faster installation. • Significantly Lower The Risk Of Hot Spot - Special circuit design with much lower hot spot temperature • Excellent Anti-PID Performance - 2 times of industry-standard anti-PID test by TUV SUD • Wider Application - No water-permeability and high wear-resistance, can be widely used in a high-humid, windy, and dusty area





Solar4America Solar's Specification

Model S4A-US330B
Series Mono Perc All-Black Crystalline Module
Manufacturer Solar4America
This is a pallet order. Qty 1   28


MECHANICAL

Specification Data
Cell Type Monocrystalline solar cells series strings
Cell Arrangement (6 X 10)pieces 158.75mmX158.75mm
Dimensions 1662 ˣ 1002 ˣ 35 mm (65.43 ˣ 39.44 ˣ 1.37 in)
Weight 18.3 kg (40lbs)
Front / Back Glass White touchened saftey glass, 3.2mm
Frame Black Anodized Aluminium Profile
J-Box Rated current T 13A, IP 67, TUV & UL
Cable 1x4mm² compatible with MC4
Cable Length (Including Connector) 12OOmm or customized length*

ELECTRICAL

Nominal Max. Power (Pmax) 330 W
Opt. Operating Voltage (Vmp) 33.4 V
Opt. Operating Current (Imp) 9.88 A
Open Circuit Voltage (Voc) 40.8 V
Short Circuit Current (Isc) 10.22 A

Warranty

  • 25 year warranty on Product & Performance
  • linear power output 12 years warranty

* Refer to warranty document for terms and conditions
Documentation

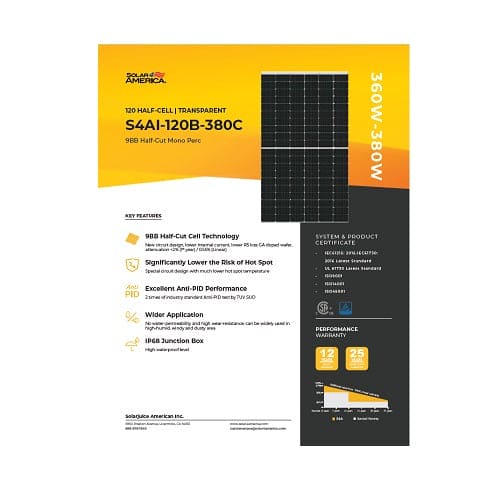

Data Sheet


Detailed Information

World class mono efficiency Minimize micro-crack Wind and snow load up to 5400 Pa *

High reliability

Custom Design for Transmission

Outstanding Temperature Coefficient

MODULE EFFICIENCY HIGH POWER OUTPUT 20.72%

Minimize Micro-crack and Free of Snail Trails

Excellent Performance under Lowlight Condition
