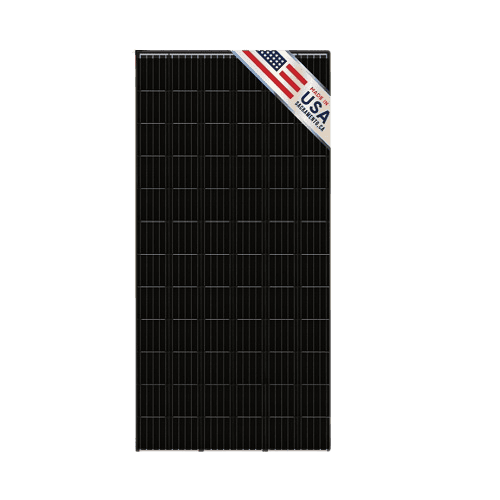

Solar4America S4A410-72MH5 410Watt 72 Cells BoB Monocrystalline

Solar4America is a solar panel manufacturer located in Sacramento, CA. Their products are certified by UL, CSA and ETL, and hold a place on the California CEC List. They offer residential, commercial, and utility products. World-class mono efficiency Minimize micro-crack Wind and snow load up to 5400 Pa Outstanding temperature coefficient Improved shading tolerance. Solar Panels, Solarflexion, Solar Flexion, Solar4America S4A410-72MH5 410Watt 72 Cells BoB Monocrystalline 40mm Black Frame Solar







Solar4America Solar's Specification

Model S4A410-72MH5
Series Mono Crystalline Module
Manufacturer Solar4America


MECHANICAL

Specification Data
Cell Type 6*12 Monocrystalline solor cells series strings(158.75mm*158.75mm)
Cell Arrangement  -
Dimensions 1980 ˣ 1140 ˣ 1120 mm
Weight 22kg (48.5 lbs)
Front / Back Glass white toughened safety glass 3.2mm
Frame Anodized Aluminium Profile
J-Box 138 IP, 67,TUV&UL
Cable Length (Including Connector) Length 1200mm, 1*4mm² compatible with MC4 or customized length*


ELECTRICAL

Nominal Max. Power (Pmax) 410 W W
Opt. Operating Voltage (Vmp) 37.8 V
Opt. Operating Current (Imp) 8..02 A
Open Circuit Voltage (Voc) 45.1 V
Short Circuit Current (Isc) 8.5 A


Warranty

  • 80% Power Output Warranty Period
  • 90% Power Output Warranty Period
  • 25 Years Product & Performance
  • Refer to warranty document for terms and conditions

Documentation

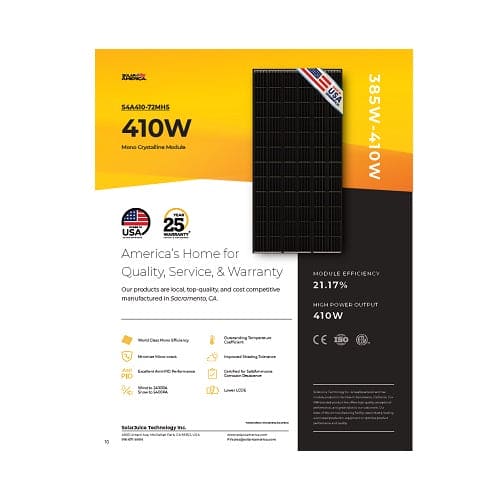

Data Sheet


Detailed Information

  • World Class Mono Efficiency
  • Outstanding Temperature Coefficient
  • Minimize Micro-crack
  • Improved Shading Tolerance
  • Excellent Anti-PID Performance
  • Wind to 2400PA Snow to 5400PA
  • Lower LCO

High reliability

World class mono efficiency Minimize micro-crack Wind and snow load up to 5400 Pa

Quality and certifications

Certified for Salt/Ammonia Corrosion Resistance

This products are certified by UL, CSA and ETL, and hold a place on the California CEC List. They offer residential, commercial and utility products.
