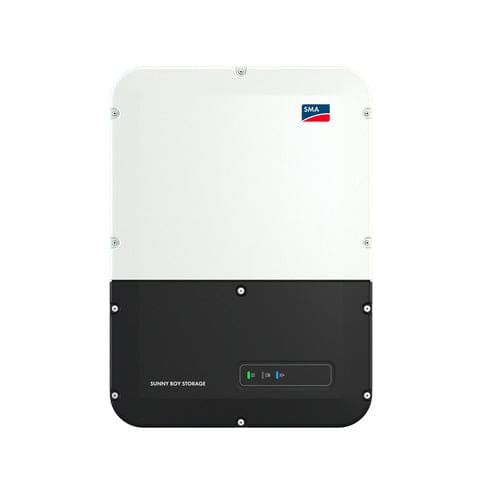

SMA Sunny Boy Storage SBS5.0-US-10 5.0kw Hybrid Inverter

SMA Sunny Boy Storage SBS5.0-US-10 5.0kw Hybrid Inverter

Regular price $2,878
Sale price $2,878 Regular price $0.00

SMA Sunny Boy Storage SBS5.0-US-10 5.0kw Hybrid Inverter

SMA Sunny Boy Storage SBS5.0-US-10 5.0kw Hybrid Inverter

Regular price $2,878
Sale price $2,878 Regular price $0.00
View full details
Description
Questions
Reviews
Dimension
(LxWxH): 39 x 23.5 x 12 inches
SMA SUNNY BOY STORAGE SBS5.0-US-10 5.0KW HYBRID INVERTER

The Sunny Boy Storage battery inverter has been precisely engineered to serve as the intelligent interface between PV, the electrical grid and industry-leading high-voltage batteries. Its AC coupled architecture enables installation at any point in time, providing greater flexibility and giving installers the opportunity to generate new business with existing customers. Along with its ability to address the large retrofit market of existing PV systems, it also delivers the most costeffective, versatile and innovative residential storage solution available. Additionally, up to 2000 W of convenience power can now be achieved in the event of a grid outage during both day and night thanks to SMA’s proprietary Backup Lite feature. Whole home backup is also available with the SMA Automatic Backup Unit.


SPECIFICATIONS

Model SBS5.0-US-10
Series -
Manufacturer SMA


GENERAL SPECIFICATIONS

CEC weighted efficiency @ 240V [%] 97.5
Max. Input Current [A] 40
Min. DC voltage / start voltage [V] 100
Min. DC voltage / start voltage [V] 100
Voltage Upper Limit for MPP Range [V] 600
Reverse-Polarity Protection true
Nominal AC Power [W] 5000
AC voltage range [V] 211-264
AC grid frequency [Hz] 60

Warranty

  • Manufacturer 12 Years Warranty

* Refer to warranty document for terms and conditions
Documentation

Data Sheet


Detailed Information

The Sunny Boy Storage battery inverter has been precisely engineered to serve as the intelligent interface between PV, the electrical grid and industry-leading high-voltage batteries. Its AC coupled architecture enables installation at any point in time, providing greater flexibility and giving installers the opportunity to generate new business with existing customers. Along with its ability to address the large retrofit market of existing PV systems, it also delivers the most costeffective, versatile and innovative residential storage solution available. Additionally, up to 2000 W of convenience power can now be achieved in the event of a grid outage during both day and night thanks to SMA’s proprietary Backup Lite feature. Whole home backup is also available with the SMA Automatic Backup Unit.

High Reliability

Quick and easy installation

Multiple configuration options with the ability to expand
