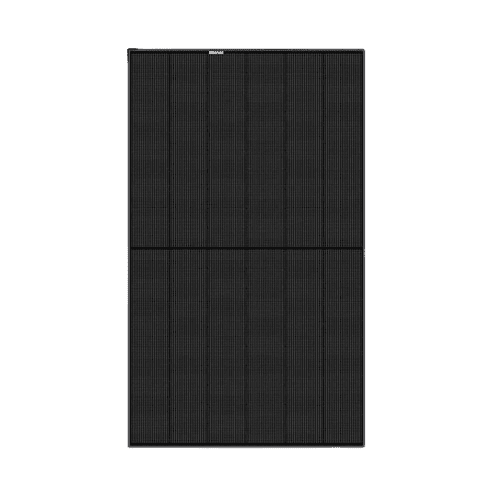

REC REC410AA Solar 410 Watt Alpha Pure R 30mm Black Frame Solar Panel

REC REC410AA Solar 410 Watt Alpha Pure R 30mm Black Frame Solar Panel

Regular price $539.50
Sale price $539.50 Regular price $0.00

REC REC410AA Solar 410 Watt Alpha Pure R 30mm Black Frame Solar Panel

REC REC410AA Solar 410 Watt Alpha Pure R 30mm Black Frame Solar Panel

Regular price $539.50
Sale price $539.50 Regular price $0.00
View full details
Description
Questions
Reviews
Pure-R
Manufacturer
Pure-R
Dimension
(LxWxH): 68.1 x 44 x 1.2 inches
REC410AA | REC Solar 410 Watt ALPHA 30mm Black Frame Solar Panel

This line of modules is the direct result of over three decades of design, manufacturing and use. Attending to every detail in the design and manufacture of our products, our process controls and testing methods have optimized module life and electrical energy production.




REC Solar's Specification

Model REC410AA
Series REC Alpha Pure Series
Manufacturer REC


MECHANICAL

Specification Data
Cell Type 132 half-cut REC heterojunction bifacial cells with lead-free, gapless technology, 6 strings of 22 cells in series
Cell Arrangement -
Dimensions 71.7 x 40 x 1.2 in (19.91 ft2 ) / 1821 x 1016 x 30 mm (1.85 m2)
Weight 45 lbs (20.5 kg)
Front / Back Glass 0.13 in (3.2 mm) solar glass with anti-reflective surface treatment in accordance with EN 12150
Frame Anodized aluminium Black
J-Box IP68, 3 bypass diodes
Cable 2 AWG (4 mm²) PV wire, 43+ 47 in (1.1 + 1.2 m)
Cable Length (Including Connector) MC4 PV-KBT4/KST4


ELECTRICAL

Nominal Max. Power (Pmax) 410 W
Opt. Operating Voltage (Vmp) -
Opt. Operating Current (Imp) -
Open Circuit Voltage (Voc) 49.0 V
Short Circuit Current (Isc) 10.35 A


Warranty

  • 25 Year Pro Trust Warranty.

* Refer to warranty document for terms and conditions

Documentation

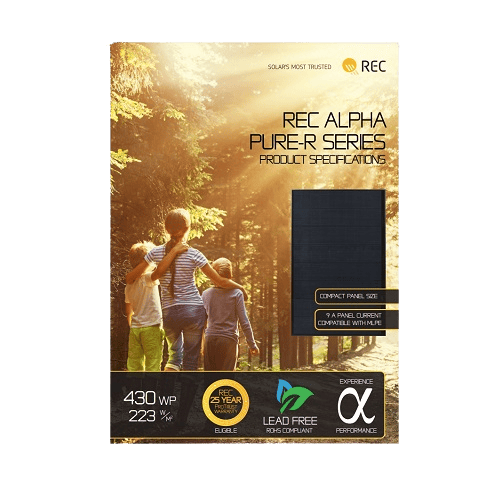

Data Sheet


Detailed Information

REC Group is an international pioneering solar energy company dedicated to empowering consumers with clean, affordable solar power. As Solar’s Most Trusted, REC is committed to high quality, innovation, and a low carbon footprint in the solar materials and solar panels it manufactures

High reliability

Cell interconnections and diode placement use well-established industry practice and are field-proven to provide excellent reliability.

Quality and certifications

IEC 61215:2016, IEC 61730:2016, UL 61730
IEC 62804 :PID
IEC 61701 :Salt Mist
IEC 62716 :Ammonia Resistance
UL 61730 :Fire Type Class 2
IEC 62782 :Dynamic Mechanical Load
IEC 61215-2:2016 :Hailstone (35mm)
IEC 62321 :Lead-freeacc. to RoHS EU 863/2015
ISO 14001, ISO 9001, IEC 45001, IEC 62941
