Hanwha Q Cells Q.PEAK DUO BLK-G10+ 365 365W Black On Black 120 Half-Cell Mono Solar Panel

Hanwha Q Cells Q.PEAK DUO BLK-G10+ 365 365W Black On Black 120 Half-Cell Mono Solar Panel

Regular price $336
Sale price $336 Regular price $0.00

Hanwha Q Cells Q.PEAK DUO BLK-G10+ 365 365W Black On Black 120 Half-Cell Mono Solar Panel

Hanwha Q Cells Q.PEAK DUO BLK-G10+ 365 365W Black On Black 120 Half-Cell Mono Solar Panel

Regular price $336
Sale price $336 Regular price $0.00
View full details
Description
Questions
Reviews
Q Cells
Manufacturer
Q Cells
Dimension
(LxWxH): 67.6 x 41.1 x 1.26 inches

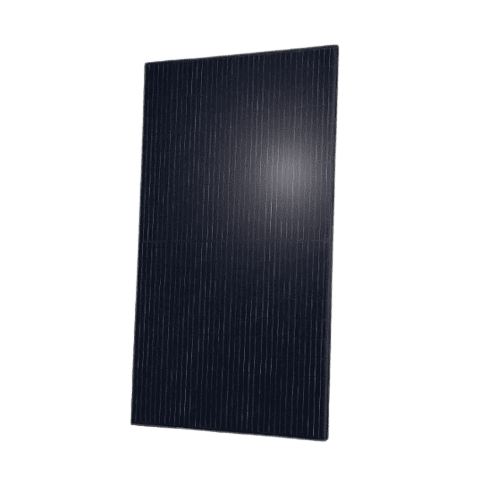

Hanwha Q Cells Q.PEAK DUO BLK-G10+365 365W 120 Cell Black/Black Solar Panel

This line of modules is the direct result of over three decades of design, manufacturing and use. Attending to every detail in the design and manufacture of our products, our process controls and testing methods have optimized module life and electrical energy production.



Hunwha Solar's Specification
Model DUO BLK-G10+365
Series Q ANTUM DUO Z
Manufacturer Hanwha


MECHANICAL

Specification Data
Cell Type Monocrystalline
Cell Arrangement 6 × 20
Dimensions 67.6in × 41.1in × 1.26in (including frame) (1717mm × 1045mm × 32mm)
Weight 43.8lbs (19.9kg)
Front / Back Glass 0.13in (3.2mm) thermally pre-stressed glass with anti-reflection technology
Frame Anodized aluminium Black
J-Box IP68
Cable 4mm² Solar cable; (+) ≥45.3in (1150mm), (+) ≥45.3in (1150mm)
Cable Length (Including Connector) MC4

ELECTRICAL

Nominal Max. Power (Pmax) 365 W
Opt. Operating Voltage (Vmp) -
Opt. Operating Current (Imp) -
Open Circuit Voltage (Voc) 41.21 V
Short Circuit Current (Isc) 11.07 A


Warranty

  • Inclusive 25-year product warranty.
  • linear performance 25-year warranty.

* Refer to warranty document for terms and conditions

Documentation

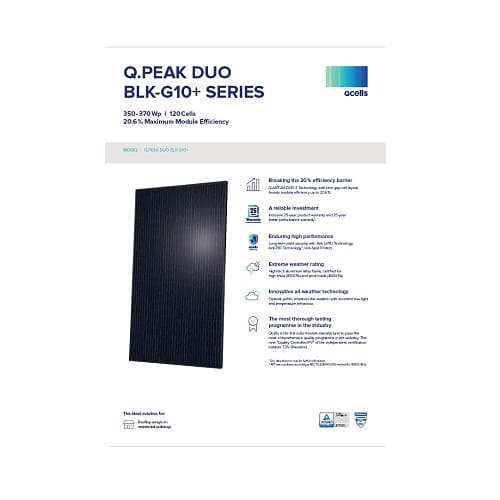

Data Sheet


Detailed Information

All data within measurement tolerances. Full warranties in accordance with the warranty terms of the Q CELLS sales organisation of your respective country

High reliability

Cell interconnections and diode placement use well-established industry practice and are field-proven to provide excellent reliability.

Long-term yield security with Anti LID Technology

Excellent low-light and temperature behaviour

Quality and certifications

IEC 61215:2016

IEC 61730:2016
