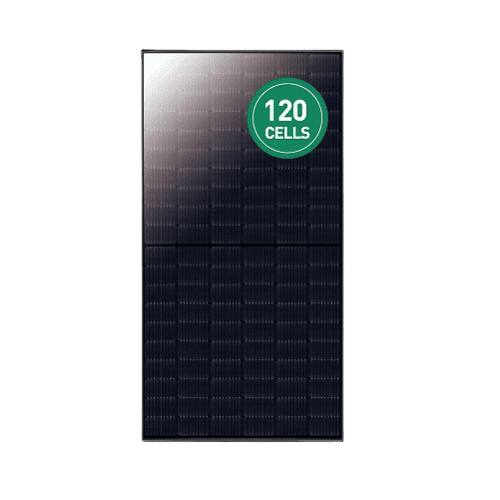

High power production and performance are offered by the Phono Solar 370-watt monocrystalline all-black solar panel at an attractive price. The PS370M4H-20/UHB solar panel has a black anodized aluminum alloy frame and 120 half-cut monocrystalline solar cells on a black back sheet. The Phono Solar 370-watt module is approved for use in the harshest environmental conditions and can endure winds of 2400 Pa and 5400 Pa of pressure. To maximize the surface area for light absorption, this high-power monocrystalline solar panel runs at 19.80% efficiency.
Phono Solar Specifications
MECHANICAL
ELECTRICAL
Warranty
* Refer to warranty document for terms and conditions
Documentation
Detailed Information
PS-20-UHB is part of the Twinplus Series — one of the most recent made by Phono Solar. These panels employ cutting-edge technologies to achieve superior efficiency and reliability. The Passivated Emitter Rear Contact (PERC) technology ensures excellent power output. This solar cell type employs an additional reflective layer to absorb more sunlight.
To further boost the performance, Phono Solar employs half-cut cell technology. Each of the panel’s 120 cells is only half the size of a traditional solar cell.
High reliability• Guaranteed 0-+5W positive tolerance secures reliable power output
• 5400Pa maximum snow load, 2400Pa maximum wind load
• Optimized electrical design lowers hot spot risk and operating currentQuality and certificationsIEC 61215, IEC 61730
ISO 9001 :2015 / Quality management system
ISO 14001 :2015 / Standards for environmental management system
OHSAS 18001 :2007 / International standards for occupational health & safety
IEC TS 62941: 2016 Terrestrial photovoltaic (PV) modules-guidelines for increased confidence in PV module design qualification and type approval
