Outback, FX2536MT battery inverter, 2500W, 120VAC, 60Hz, 40A Transfer, 36VDC, Sinewave, Off Grid, 5 Yr Warr, 35A Charger, with BTS & Switched Ground, FX2536MT

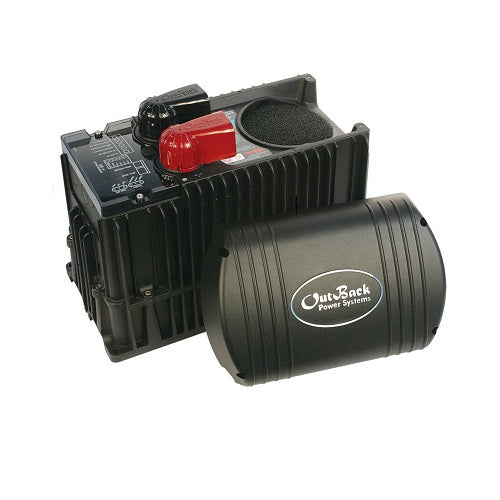

The sealed M-Series FX2536MT by Outback Power is a 2.5kW (2500 watt) hybrid inverter/charger that provides 120Vac true sine wave power output in 36V with intelligent battery charging. Ready for off-grid or grid-tied operation, the M-series inverter/charger is scalable to grow with your household needs. This inverter charger includes an integrated 35 amp battery charger and 30 amp AC transfer switch with neutral/ground switching for shore chord or generator connection. Highly durable, the inverter charger features weather-resistant sealed chassis and die-cast metal construction that allows mounting in any position.
SPECIFICATIONS
GENERAL SPECIFICATIONS
Warranty
* Refer to warranty document for terms and conditionsDocumentation
Detailed Information
Nominal DC input voltage: 36 Volts DC
Continuous power output: 2,500 Volt-Amps (VA)
AC voltage: 120 Volts AC
AC frequency: 60 Hz
Idle power: ~6 Watts search, ~21 Watts full
Efficiency: 92%
Maximum output current (RMS): 40 Amps AC
Surge capability: 4,800 VA Instantaneous; 4,000 VA 5 sec.
Maximum AC input current: 30 Amps AC
High reliability
Continuous battery charger output: 35 Amps DC
Comes with a battery temperature sensor
Certifications: ETL Listed to UL458
