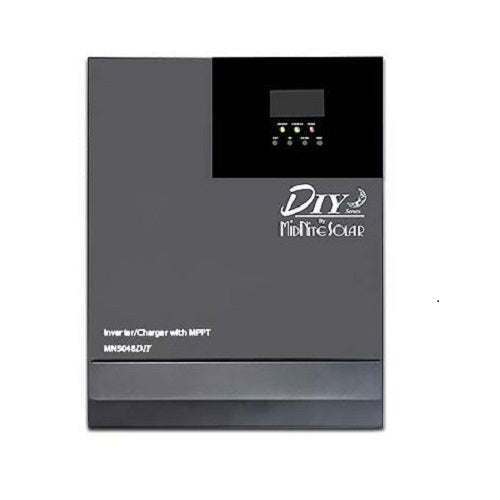

MidNite, MN5048DIY Off-Grid Battery Inverter, 5000W, 48Vdc, 120Vac Sinewave, 60Hz, 63A AC By-Pass, 40A AC Charger, with Built In 500V MPPT Charge Controller, 1 Year Warranty, MN5048DIY
Offering a simple, all-in-one installation and flexible programming, the new MidNite Solar Inverter/charger DIY Series will charge virtually any battery chemistry. With excellent surge capability, the DIY Series will start the most demanding 120VAC loads. Perfect for your off-grid cabin or house, the DIY Series is designed to be affordable, dependable, and supported by the industry’s best customer service personnel at MidNite Solar.
SPECIFICATIONS
GENERAL SPECIFICATIONS
Warranty
* Refer to warranty document for terms and conditionsDocumentation
Detailed Information
System Voltage: 48VDC
Max Rated Power: 5000W Continuous
Surge Power: 7000W
Power Factor: 1
Input Voltage: 120VAC
Input Voltage Range: 90-140VAC +- 2% Adjustable
Input/Output Frequency: 60Hz
Output Voltage: 120VAC +- 5%
Output Waveform: Pure Sine Wave
Peak Efficiency: >95%
Max AC Charging Current: 40A
Internal Bypass Current: Up to 63A
Conversion (Bypass and Invert): 10ms
Max PV Input Power: 5000W
Max PV Charging Current: 80A
Max PV Input Voltage: 500V
High reliability
Algorithm: MPPT
MPPT Voltage Range: 120 - 450V
Battery Type: Lead Acid or Lithium
Max AC Battery Charging Current: 40A
Max PV Battery Charging Current: 80A
Battery Voltage Range: 40 - 60V DC
Operating Temperature: -15C ~ 55C
Storage Temperature: -25C ~ 60C
Humidity: 5% ~ 95% (3 Layer Paint Protection)
