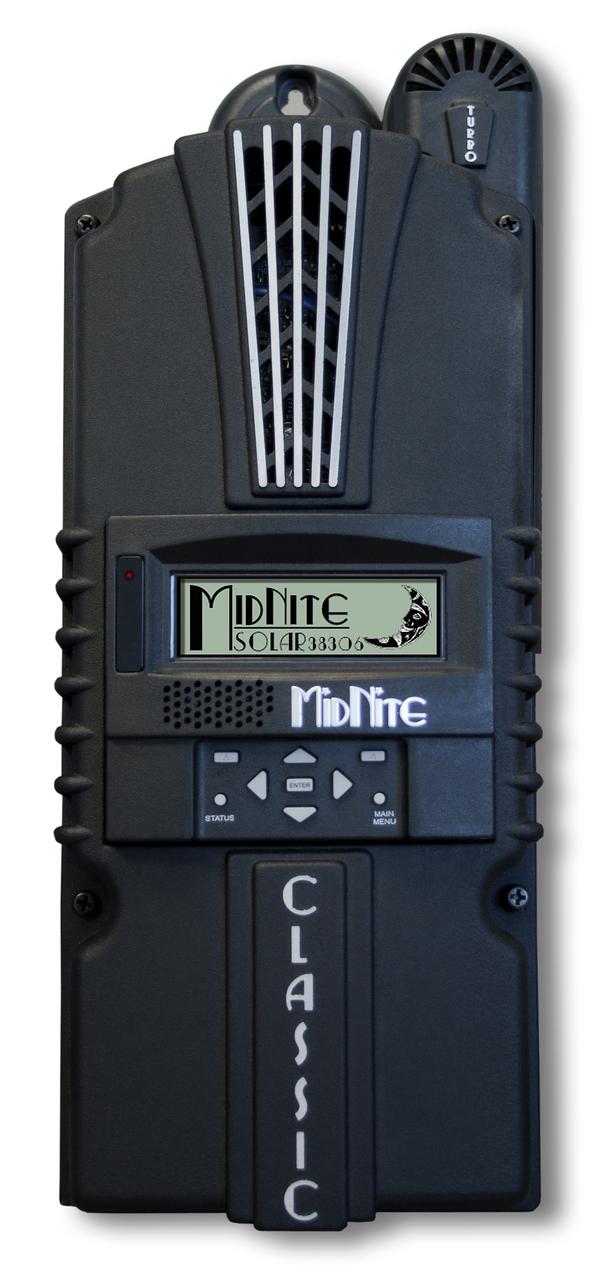

MidNite Solar Classic 200 MPPT Charge Controller

MidNite Solar Classic 200 MPPT Charge Controller

Regular price $703.25
Sale price $703.25 Regular price $0.00

MidNite Solar Classic 200 MPPT Charge Controller

MidNite Solar Classic 200 MPPT Charge Controller

Regular price $703.25
Sale price $703.25 Regular price $0.00
View full details
Description
Questions
Reviews
MidNite Solar
Manufacturer
MidNite Solar
Dimension
(LxWxH): 19 x 8.5 x 6 inches

MPPT Charge Controller, 200VDC, 79A, 12-93V Battery, with BTS & LCD, Arc-fault Protection.

The CLASSIC 200 MPPT Charge Controller is redefining off-grid solar energy systems. The Classic 200 charge controller is reliable with high functionality, and incredibly powerful Maximum Power Point Tracking (MPPT) technology. It is the first MPPT controller that has Arc Fault Detection, making this charge controller one of the safest controllers available in the photovoltaic market. With MidNite Solar's Classic model charge controllers (rated from 63 to 96 Amps) you won't need any other charge controller for your off-grid solar energy application.

Features

  • Flexible & Versitile - 12-72V battery charging standard with models up to 120V battery bank. Solar, wind and hydro MPPT modes. Parallel operation for multiple Classic charge controllers. Manual and Auto EQ. Exclusive hyperVOC extends VOC limits.
  • Powerful Communications - Ethernet, USB and RS232. Remote and local displays possible. 20 megabytes of data logging (380 days). Wizard walks you through complete setup: Battery hook up, PV array sizing and hook up, Wind turbine program selection, Wire sizing, Breaker selection, PV combiner selection, Sunrise and sunset program set up, Voltage drop calculations. Communicates with the Clipper and Whizband Jr. Online status monitoring available.
  • Safe & Reliable - Built in DC-GFP and Arc Fault Protection. ETL listed to UL1741. Ground fault protection. Equalization charging (adjustable voltage and duration, manual or auto). Fully protected on battery reverse polarity, overvoltage, and short circuit.



Mechanical Data

Technology: Maximum Power Point Tracking (MPPT)
Dimensions:
14.90 x 6.00 x 4.00 inches
Weight: 12.00 lbs
Casing: (Black)
Display: Graphical Display (MNGP)
Auxiliary Control Output:
Two Auxiliary Outputs (Programmable)
Communications: Ethernet, Modbus & RS232
Network Cables:
Standard 4 Conductor Phone Cable
Environmental Rating: Indoor Type IP30



Electrical Data

Nominal Battery Voltage: 12V - 72 Volts
Maximum Output Current: 79A on 12V, 78A on 24+48V & 65A on 72V Battery
PV Open Circuit Voltage (Voc): 200V + HyperVOC
Maximum Voc: 248 Volts
Maximum Operating Voltage: 200 Volts
Maximum Battery Voltage: 72 Volts
Power Conversion Efficiency: 98% (Typical System)
Auxilliary Output:
2 Outputs
Operating Temperature: -40°C + 50°C (Controller Auto Derate above + 25°C)
Terminal Rating:
75°C
Data Logging:
380 Days of History
Battery Voltage Regulation:
10 - 100VDC (Set Points)
Max. Stand-By Self-Consumption (12V): 2.8W - 4 Watts
