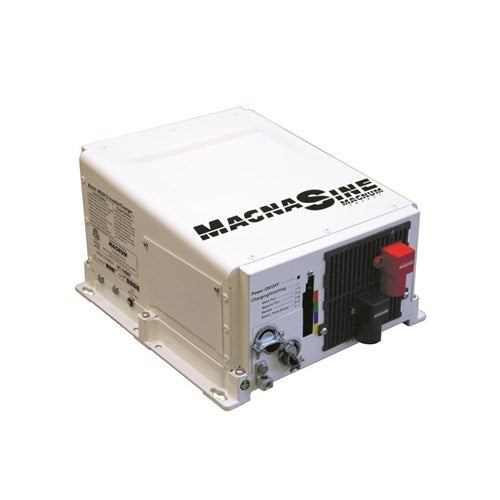

Magnum Energy MS Series MS2812-L-U 2.8kW 12VDC Pure Sine Wave Inverter / 125A PFC Charger  Manufacturer Part#: MS2812-L-U

The MS Series inverter/charger is a line of pure sine wave inverters designed for mobile, backup, and off-grid applications. MS Series inverter/chargers are powerful, easy-to-use, and best of all, cost effective.

  • Pure Sine Wave – Power your sensitive electronics without worry. The MS Series provides reliable, utility-grade power
  • Power Factor Corrected (PFC) Charger – Our PFC charger is built into all of our inverter/chargers. It uses less energy from a generator than a standard charger – 25-30% less AC current than standard chargers
  • Convenient Wiring Access – An extra large AC access cover with terminal screw block and 360° DC connection terminals with covers make wiring easier
  • Convenient Switches – The MS Series comes with an on/off inverter-mounted switch with an easy-to-read LED indicator

Magnum Energy MS2812-L-U is compatible with lithium iron phosphate (LFP) batteries.

Specifications

Full data sheet can be found in the Document(s) tab above.

Inverter Specifications
Input Battery Voltage Range 9 - 16.8 VDC
Nominal AC Output Voltage 120 VAC ± 5%
Output Frequency & Accuracy 60 Hz ± 0.1 Hz
Output Power (Continuous Watts) 2800
Maximum Continuous Input Current 373 ADC
Inverter Efficiency (Peak) 90%
Charger Specifications
Continuous Output At 25°C 125 ADC
Charger Efficiency (Peak) 85%
Power Factor > .95
Input Current For Continuous Rated Output 18 AAC


Physical Specifications
Dimensions
(L x W x H)		 34.9 x 32.1 x 20.3 cm
13.75 x 12.65 x 8.0 in
Weight 24.9 kg / 55 lbs
Shipping Weight 28.1 kg / 62 lbs
Max Operating Altitude 4,570 m (15,000 ft)



DATA SHEET
