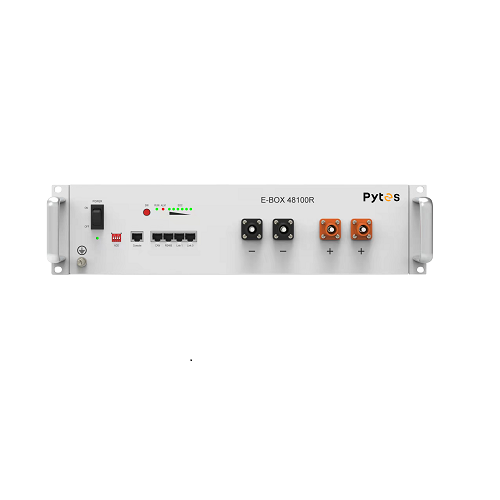

PYTES Energy E-BOX-48100R LFP Battery 5.12kW 100Ah 48VDC

PYTES Energy E-BOX-48100R LFP Battery 5.12kW 100Ah 48VDC

Regular price $2,079
Sale price $2,079 Regular price $0.00

PYTES Energy E-BOX-48100R LFP Battery 5.12kW 100Ah 48VDC

PYTES Energy E-BOX-48100R LFP Battery 5.12kW 100Ah 48VDC

Regular price $2,079
Sale price $2,079 Regular price $0.00
View full details
Description
Questions
Reviews
PYTES
Manufacturer
PYTES
Dimension
(LxWxH):17.32 * 24.41 * 4.61 inch

E-BOX series, the new generation LFP battery for home energy storage system. It provides safe, well-designed and high-performance standard LFP battery pack for you. The battery pack is compact, easy to install, free of maintenance, and could be deployed to the building block of energy storage system by being assembled in parallel. It is widely applied in home applications, small commercial and industrial energy storage system as well as Telecom stations. BMS and cable set is included,10 years standard warranty, 6000 circles DOD 90



Chemistry
 LFP
Nominal Voltage
51.2V
Voltage Range
47.5V-58V
Nominal Capacity
100Ah
Nominal Energy
5.12kWh
Unit Dimension
17.32 * 24.41 * 4.61 inch
Unit Weight
112.5lbs
Standard Charge Current
50A
Maximum Charge Current
50A
Standard Discharge
50A
Maximum Discharge Rate
50A
Round-Trip Efficiency
≥95%
Communication Protocol
RS232, RS485, CAN
Cycle Life
≥6000cycles
Calendar Life
≥10years
Operating Temperature
-10°C~50°C
Connect style
Parallel
Storage Temperature
Within 1month:-20~55°C,
1-3months: 0~35°C,
3-12months: 20~25°C

Certificates UL9540, UL9540A, UL1973, SGIP, CEC
