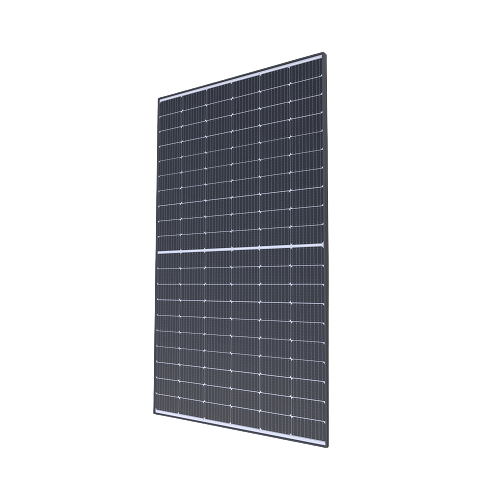

Boviet Vega BVM6610M-370S-H-HC-BF 370W Black On Black 120 Half-cell Mono Solar Panel

Boviet Vega BVM6610M-370S-H-HC-BF 370W Black On Black 120 Half-cell Mono Solar Panel

Regular price $334.50
Sale price $334.50 Regular price $0.00

Boviet Vega BVM6610M-370S-H-HC-BF 370W Black On Black 120 Half-cell Mono Solar Panel

Boviet Vega BVM6610M-370S-H-HC-BF 370W Black On Black 120 Half-cell Mono Solar Panel

Regular price $334.50
Sale price $334.50 Regular price $0.00
View full details
Description
Questions
Reviews
Boviet
Manufacturer
Boviet
Dimension
(LxWxH): 89.68 x 44.64 x 1.37 inches
Boviet Vega BVM6610M-370S-H-HC-BF 370W Black On Black 120 Half-cell Mono Solar Panel

Our PV modules are designed with better technology in mind, made from robust product components, under stringent quality control steps and high-tech manufacturing processes. PERC, half-cut, multi-busbar, and large cell designs enables our PV modules to pack more power per module, capture more photons, produce more energy, and provide reliable, dependable system performance under different installations requirements, difficult weather, or environmental conditions. Whether you are EPC, installer, contractor, or project developer, we have the right and better PV module for your residential, commercial, industrial, and utility scale solar projects.



Boviet Solar's Specification
Model BVM6610M(S)-HC-BF
Series Bifacial Module
Manufacturer Boviet


MECHANICAL

Specification Data
Solar Cell Type Bifacial-Monocrystalline 6.54 x 3.27 inch, 120 (6 x 20) pcs. in series
Dimensions 70.63x41.19x1.38 Inches
Weight 21.9 (48.50 lb)
Front / Back Glass High transparency, low iron, AR coated tempered glass 3.2mm(0.13 inch)
Frame Anodized aluminium alloy
J-Box IP68 rated, with 3 bypass diode
Cable 4 mm² (EU)/12 AWG (US)
Cable Length (Including Connector) 39.38 inch

ELECTRICAL

Nominal Max. Power (Pmax) 370 W
Opt. Operating Voltage (Vmp) 33.76 V
Opt. Operating Current (Imp) 10.96 A
Open Circuit Voltage (Voc) 40.56 V
Short Circuit Current (Isc) 11.54 A

Warranty

  •  12-year product warranty
  •  25-year linear power output warranty

* Refer to warranty document for terms and conditions
Documentation

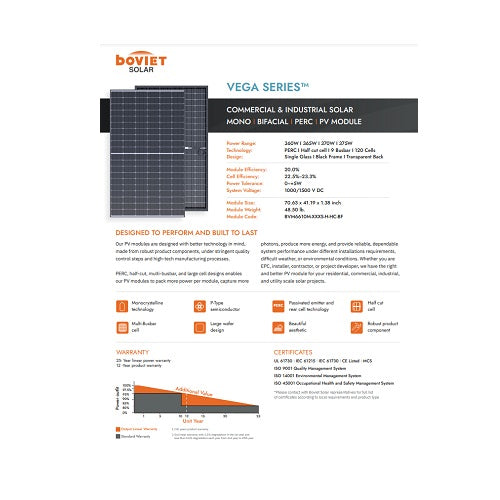

Data Sheet


Detailed Information

Our PV modules are designed with better technology in mind, made from robust product components, under stringent quality control steps and high-tech manufacturing processes. PERC, half-cut, multi-busbar, and large cell designs enables our PV modules to pack more power per module, capture more photons, produce more energy, and provide reliable, dependable system performance under different installations requirements, difficult weather, or environmental conditions. Whether you are EPC, installer, contractor, or project developer, we have the right and better PV module for your residential, commercial, industrial, and utility scale solar projects.

High reliability

Withstand up to 5400 Pa snow load and 2400 Pa wind load
2 EL inspections per cell/module for defect-free consistency
High salt and ammonia resistance certified
0~+5 W guaranteed positive tolerance, rugged design for long-term durability; passed extended reliability tests

Quality and certifications
UL 61730 I IEC 61215 I IEC 61730 I CE Listed I MCS

ISO 9001 Quality Management System

ISO 14001 Environmental Management System

ISO 45001 Occupational Health and Safety Management System
