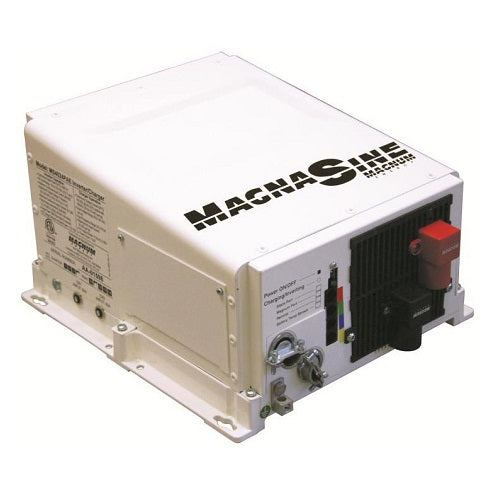

MAGNUM, 4400W 48VDC Pure Sine Inverter Charger MS4448PAE

MAGNUM, 4400W 48VDC Pure Sine Inverter Charger MS4448PAE

$2,560
$2,560 $0.00

MAGNUM, 4400W 48VDC Pure Sine Inverter Charger MS4448PAE

MAGNUM, 4400W 48VDC Pure Sine Inverter Charger MS4448PAE

$2,560
$2,560 $0.00
View full details
Description
Questions
Reviews
MAGNUM
Manufacturer
MAGNUM
Dimension
(LxWxH): 15 x 15 x 14 inches

Magnum, MS4448PAE battery inverter, 4400W, 120/240VAC, 60Hz, 2x30A Transfer, 48VDC, Sinewave, Off Grid, 3 Yr Warr, 60A Charger, with BTS, MS4448PAE

Magnum Energy's MS4448PAE (MS-PAE Series) 120/240V Inverter/Charger is a pure sine wave inverter suited to the most demanding renewable energy applications. The MS-PAE Series is capable, simple to use, and, most importantly, cost-effective.

The MS-PAE Series' unique design allows it to provide 120 and 240 volts output in one unit, removing the need to stack two units together to achieve 240 volts.

Features

  • Compatibility - Parallel stacking: Up to four inverter/chargers can be connected in parallel for a total performance of 17.6kw at 120/240V. For parallel stacking the MS-PAE Series, the MP panels and router are needed.
  • Safety - For renewable energy installations, the MS-PAE Series is ETL Listed to the stringent specifications of UL 1741, 1st edition, and CSA C22.2 #107.1-01.
  • User Friendly - Magnum Energy's Power Factor Corrected (PFC) charger is integrated into all of their inverter chargers. It uses less energy from a generator than a normal battery, drawing 25-30% less AC current.
SPECIFICATIONS(ACTIVE TAB)
    Output Power 4,400W
    Peak Watts 8,500W
    Warranty Three years parts and labor (five years when installed on MMP or MP system)
    Output Voltage 120 / 240 VAC
    Output Current 36.7 amps
    Output Waveform Pure Sine
    Output Frequency 60 Hz
    Input Voltage 48
    Operating Temp -20° C to +60° C (-4° F to 140° F)
    Efficiency 94%
    Weight 55 lb (24.9 kg)
    Dimensions 13.75” x 12.65” x 8.0” (34.9 cm x 32.1 cm x 20.3 cm)
    UL Certified Yes
    Phase Single
    Topology Low Frequency
    Input Battery Voltage Range 36-64

    FEATURES

    Pure Sine Wave
    Lightweight, versatile mounting
    Multiple Ports

    OPTIONS

    Remote Panel:

    ME-ARC, ME-RC, ME-RTR

    Dual Voltage:

    120/240 VAC split phase (± 5%)

    Option 1:

    AGS

    Option 2:

    MagWeb

    Charger Type:

    5-Stage Bulk, Absorb, Float, Equalize (requires remote), and Battery Saver™

    Input Current:

    17.5 AAC per leg

    Output Current:

    60 ADC
